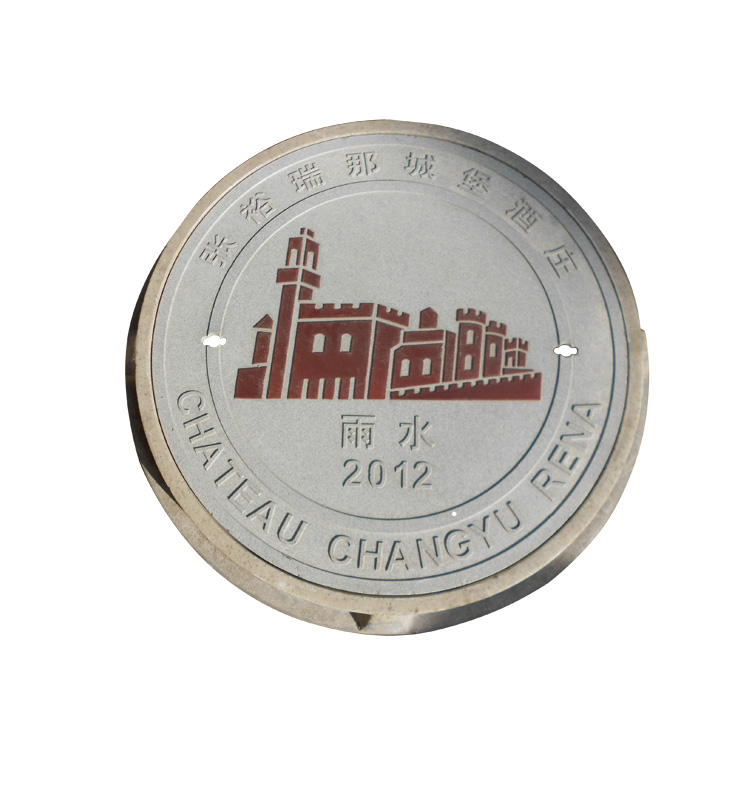

FRP composite manhole rings and covers

Features:

1. No color fading, Anti-UV, acid, alkali, weathering resistance.

2. Consequences of temporarily overloading.

3. Long service life for more than 30 years.

4. Light weight. Easy maintenance.

5. Safety options, theft-proof

6. Shock proof, low noise.

Applications:

a. Underground Electrical Installations: Draw pits, traffic lights, street lighting, fiber optic cable ducts;

b.Telecommunications: Connection charmbers, water, gas, petrol-chemical installations;

c. Urban Building Solutions: Pedestrians and comparable areas, car parking decks, gully tops;

d. Road Construction: Road cover and the load is suit for all the road vehicles.


 Item  Clear opening  Cover size  Frame size  Height  Weight  Load capacity
 1  Ø636mm  Ø700mm  Ø790mm  60mm  33kg/36.5kg  A15/B125
 2  Ø626mm  Ø700mm  Ø790mm  88mm  46kg/61kg  C250/D400
 3  Ø742mm  Ø800mm  Ø900mm  93mm  56kg/80kg  B125/C250
 4  Ø810mm  Ø900mm  Ø1000mm  100mm  115kg  C250
 5  Ø936mm  Ø1000mm  Ø1100mm  92mm  128kg  C250
